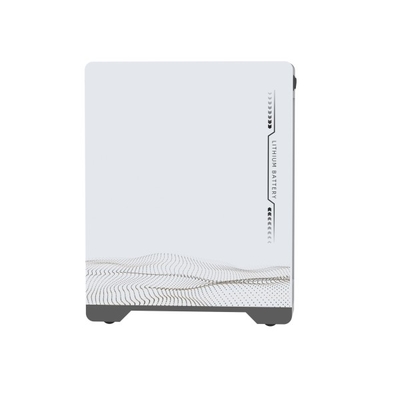

Product Details
Place of Origin: Guangdong
Brand Name: Hua Power
Certification: CE,RoHS
Model Number: AT48-200Ah
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: 1630
Packaging Details: Carton or wooden case
Delivery Time: 25~30 Working days
Payment Terms: T/T, L/C
Supply Ability: 1000000 Pieces/Month
Storage Capacity: |
10240Wh 48V |
Standard Capacity: |
200Ah/51.2V |
Continuous Input Current: |
100A |
Continuous Output Current: |
100A |
Standard Charging Voltage: |
57.6V-60V |
Cut Off: |
36V-48V |
Self-discharge (25°C): |
<3%/month |
Depth Of Discharge: |
>80% |
Operating Temperature Range: |
-20°C-70°C |
Recommended Temperature Range: |
10℃-45℃ |
Cycle Life: |
>5000 Times（<0.5C） |
C-rate Discharge: |
<0.8C |
Storage Capacity: |
10240Wh 48V |
Standard Capacity: |
200Ah/51.2V |
Continuous Input Current: |
100A |
Continuous Output Current: |
100A |
Standard Charging Voltage: |
57.6V-60V |
Cut Off: |
36V-48V |
Self-discharge (25°C): |
<3%/month |
Depth Of Discharge: |
>80% |
Operating Temperature Range: |
-20°C-70°C |
Recommended Temperature Range: |
10℃-45℃ |
Cycle Life: |
>5000 Times（<0.5C） |
C-rate Discharge: |
<0.8C |
Specifications:
| Model No. | AT48-200Ah |
| Battery type | |
| Rated capacity of battery pack | 200Ah |
| Rated voltage of battery pack | 51.2V |
| Maximum charging voltage | 57.6V |
| Minimum discharge voltage | 40V |
| Rated charge/discharge current | 100A |
| Maximum charge/discharge current | 120A |
| Charging temperature range | 0 to +45°C |
| Discharge temperature range | -20°C to +50°C |
| IP lever | IP21 |
| Depth of discharge | ＞80% |
| Discharge magnification | ＜1C |
| Self-discharge (25°C) | ＜3%/Month |
| Cycle life | ＞5000 times(＜0.5C) |
| Interactive mode | (APP) LCD+Button+Bluetooth |
| Dimension | 750*515*250mm (±2mm) |
| Weight | 91.0KG |
