215kWh 645kWh 1075kWh Industrial Solar Battery Storage System 1MWh Energy Storage Cabinet On-grid Off-grid & Hybrid ESS

215kWh 645kWh 1075kWh Industrial Solar Battery Storage System 1MWh Energy Storage Cabinet On-grid Off-grid & Hybrid ESS

containerized battery storage

containerized battery energy storage system

Place of Origin:

China

Brand Name:

Hua Power

Contact Us

Request A Quote
Product Details
Standard Capacity:
645KWh/1075KWh
Warranty:
10 Years
Accessories:
PCS
Battery Cell Type:
LFP 3.2V/280Ah
Cooling Type:
Intemal Air Conditioning With Independent Temperature Control
Protection:
IP54
Depth Of Charge:
80% DOD
Dimension:
1100× 800× 1800 Mm
Payment & Shipping Terms
Product Description

Product Photos:

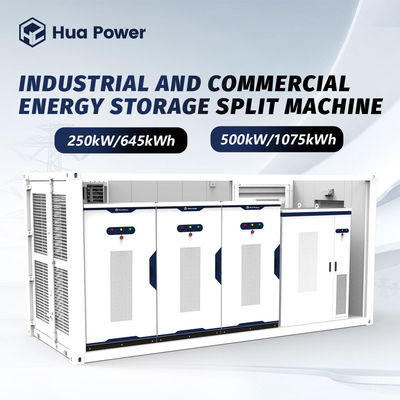

215kWh 645kWh 1075kWh Industrial Solar Battery Storage System 1MWh Energy Storage Cabinet On-grid Off-grid & Hybrid ESS 0

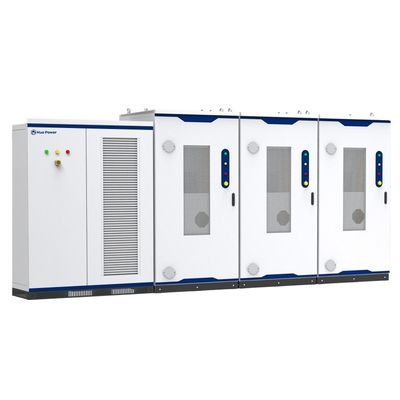

215kWh 645kWh 1075kWh Industrial Solar Battery Storage System 1MWh Energy Storage Cabinet On-grid Off-grid & Hybrid ESS 1

215kWh 645kWh 1075kWh Industrial Solar Battery Storage System 1MWh Energy Storage Cabinet On-grid Off-grid & Hybrid ESS 2

215kWh 645kWh 1075kWh Industrial Solar Battery Storage System 1MWh Energy Storage Cabinet On-grid Off-grid & Hybrid ESS 3

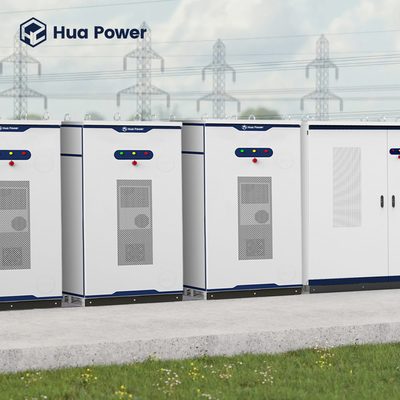

215kWh 645kWh 1075kWh Industrial Solar Battery Storage System 1MWh Energy Storage Cabinet On-grid Off-grid & Hybrid ESS 4


Product Description:

1.Outdoor Energy Storage Cabinet is a modular, flexible battery system that is easily and cost-effectively scalable from 215kWh tomecawatts. t intearates battery cells, BMS, HVAC, and fire suspension in a high lP outdoor cabinet, which is pre-engineered & pre-testeoto save instal times and costs.

2.The system uses CATL. LiFePO4 chemistry for the highest level of safety, thermal stability, and reliabity.

3.The system enables its users to reduce energy costs and makes the network more resiient by actively managing the timing and profile of theienergy usage through Peak-shaving, load-shifting, etc.



Features:

  1. Product Name: 215 KWh 645 KWh 1075 KWh 1 MWh BESS Energy Storage System Energy Storage Cabinet
  2. Standard capacity: 215kWh/100kW, 1075kWh/500kW
  3. Warranty: 10 Years
Product Technical Specification
Model CP215
Battery Cell Type LFP 3.2V/280Ah
Rated capacity 215kW /1075kWh
System 1P15S
Depth of Charge 80% DOD
Rated Power 100KW
Rated Voltage( AC) 768V
Rated Current 140A
Cooling Type IntemalAir Conditioningwith Independent Temperature Control
Ingress Protection IP54
Working Temperature -10~45C
Relative Humidity 5%-95%RH,withoutCondensation
Fire Extinquishing System FM-200(Novec1 23 0 Optional)
Dimension 1200× 2085× 1000 mm
Weight 2000Kg
